Lemon Battery

Ingredients:

Assembly:
Jam the copper down into the lemon. Jam the nail into the lemon, making sure it doesn't touch the copper. Connect the alligator clips to the "leads" and the terminals on the gauge. Done deal.

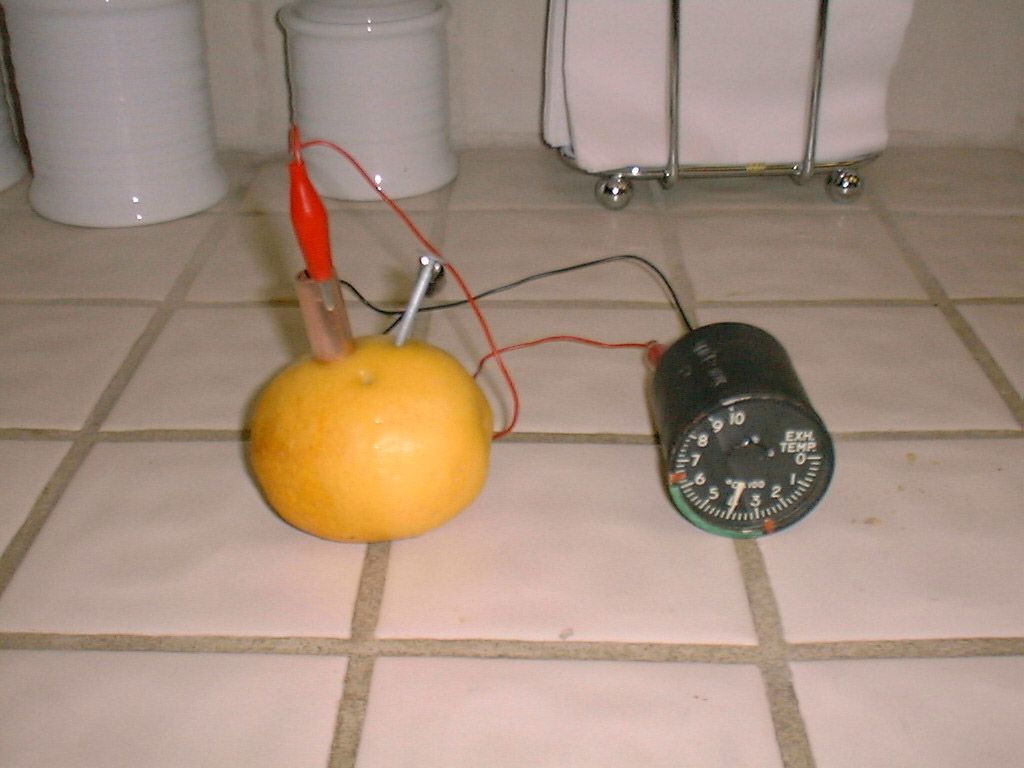

You can vary the current produced based on how far you push the nail and/or copper pipe into the lemon. Illustrated here are three different nail positions. First, barely inserted:
Click for full size

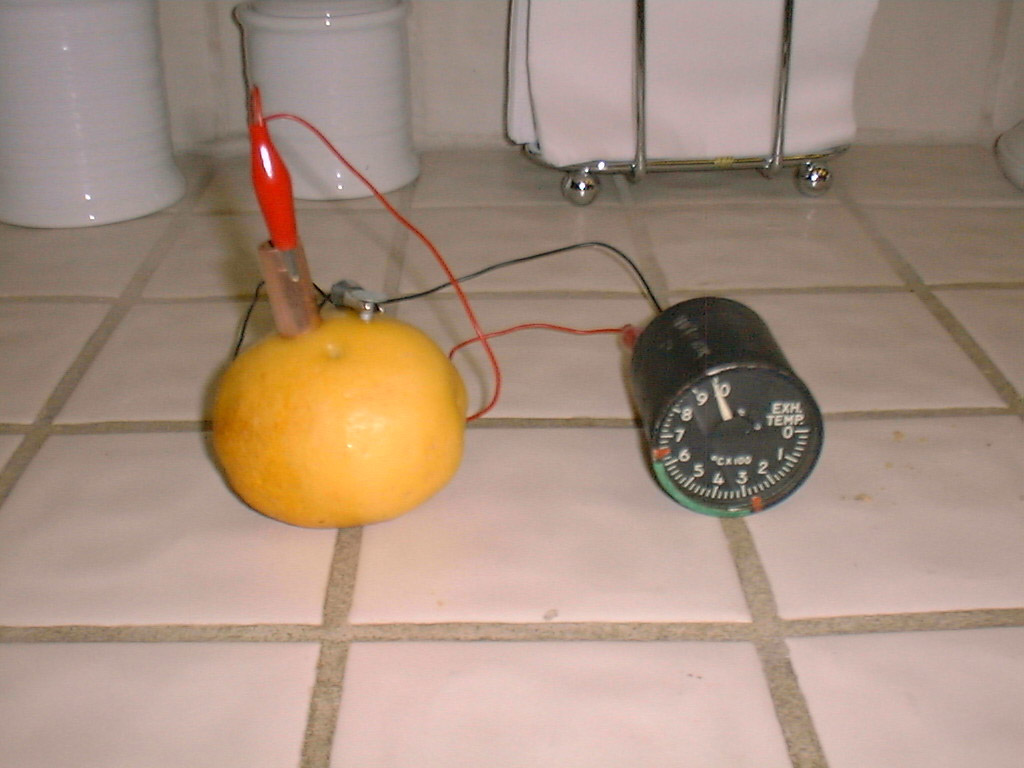

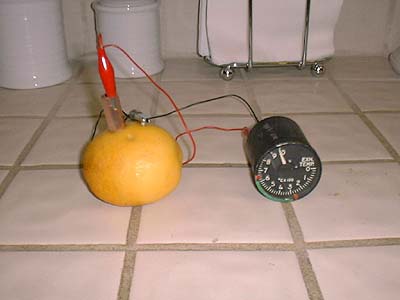

Next, inserted most of the way:
Click for full size

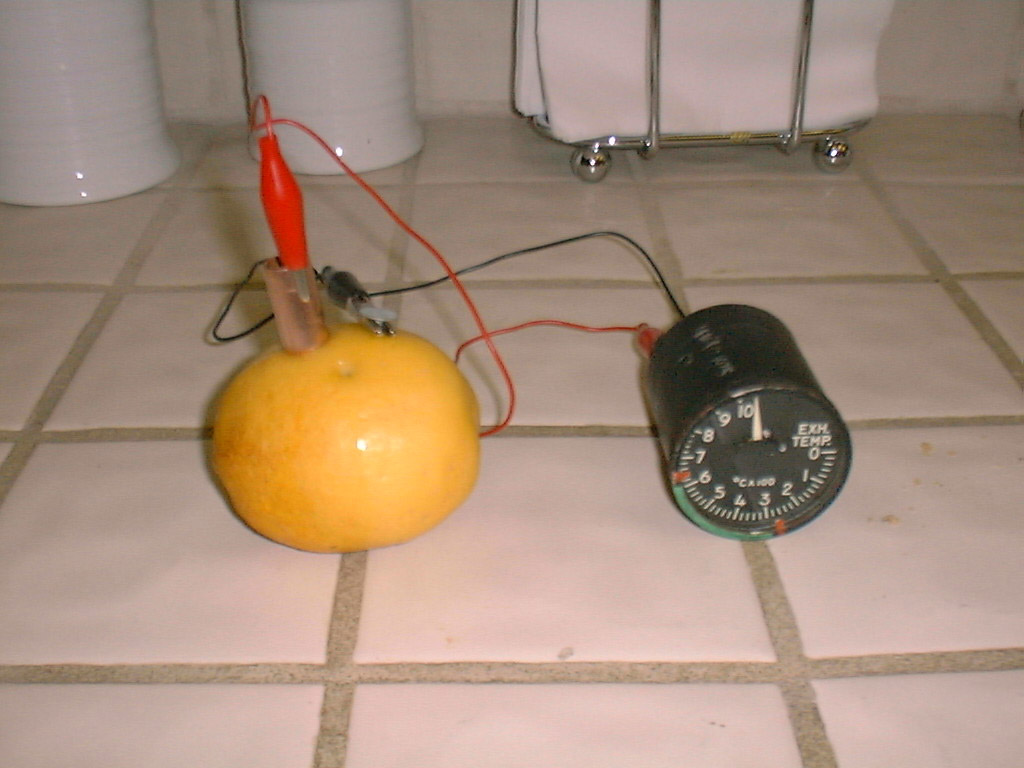

Last, inserted all the way (the gauge is pinned):
Click for full size

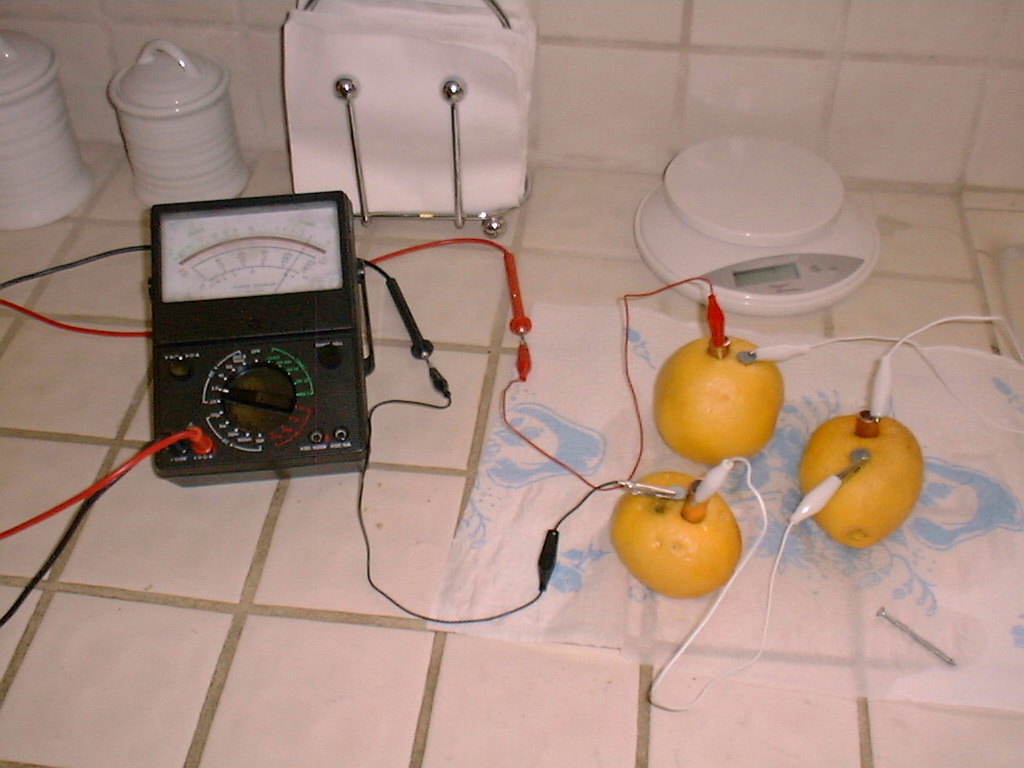

I actually set up three lemons in this fashion, with jumpers joining the cathode of each lemon to the anode of another. When run in series, I got the following measurements (yeah, I know, a digital multimeter would provide much more accuracy):

The insertion depth of the leads inside the lemons varies the current, but the voltage stays constant regardless.
Click for full size


Dan Checkoway ()
